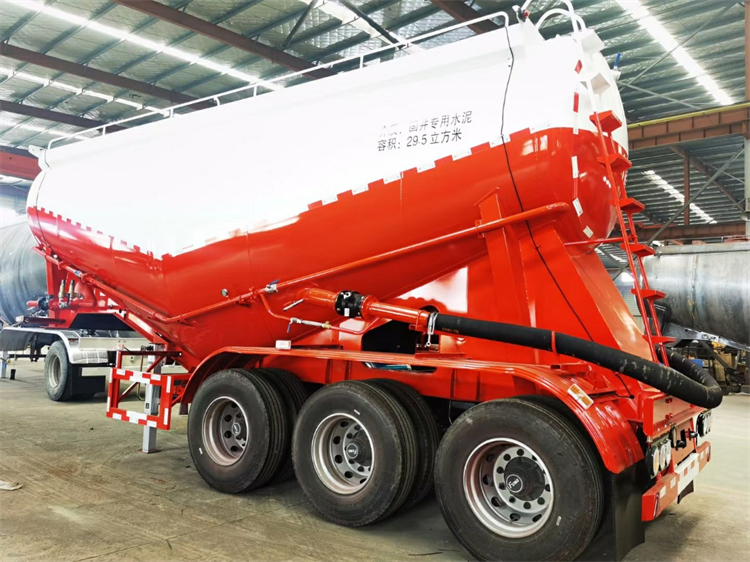

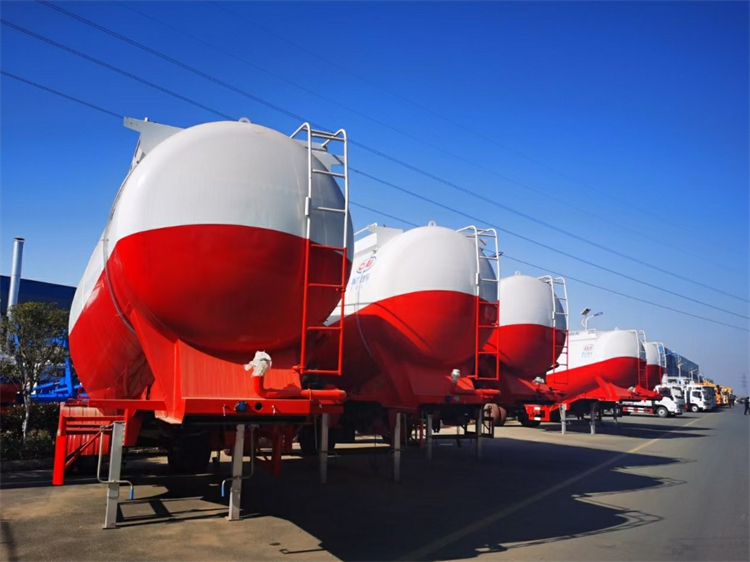

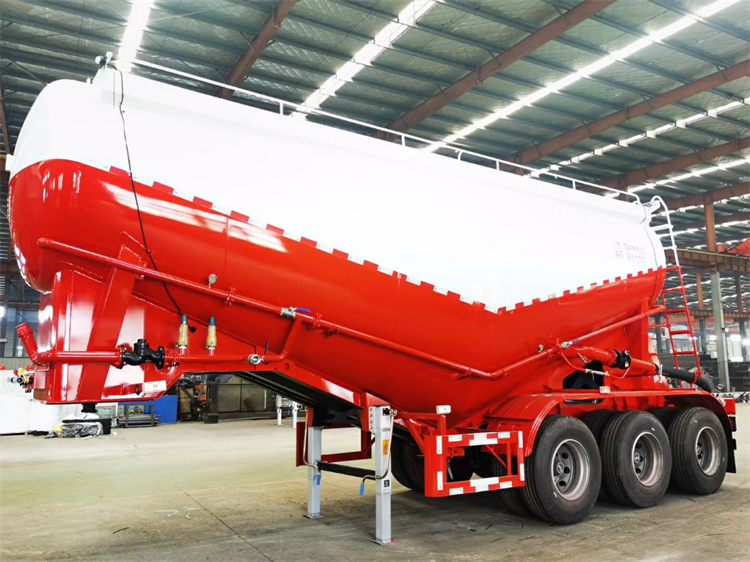

Bulk cement trailer is a semi-trailer V type used for the transport of bulk cement and other cement products. V type cement trailer is also suitable for the transport of powdered products such as flour, starch, coal ash, cement, lime powder, mineral powder, etc. Trailer capacity from 20 to 60cbm. Available from 2 to 4 axles. The discharge is carried out with the help of a compressor. Compressors work with the help of diesel or electric motors. Diesel compressors are recommended for use.
A pneumatic bulk cement trailer is a system applied to the trailer by vacuum or pressure for easier discharge of powder products. it is installed in the tank body without air exchange. The air pressed into the tank by means of a Cement Trailer air compressor powered by a diesel engine or electric motor allows the product to be ejected through the pipe.
Specifications of 3 Axles 35cbm Bulk Cement Carrier Tank Trailer:
Product name | 'V' type bulk cement tanker semi trailer |
Application | Bulk Cement/ Dry Mixed Mortar/ Fly Ash/ Powder Loading |
Overall dimensions (L*W*H) | 8430*2550*3990 mm |
Curb weight | Appro×6250 |
Tank Volume | 35 m3 |
Tank body material | 3mm thickness, Q345 high tension carbon steel |
Tank head | 4mm thickness, Q345 high tension carbon steel |
Diesel engine | China famous brand Weichai 4105 Diesel Unit |
Compressor | China famous brand 12m3 dual cylinder air compressor |
Wheelbase | 4330+1310+1310 mm |
Compartment | 1 compartment |
Manhole | 2 pieces |
Discharge valve | 1 piece, 4 inch |
Discharge pipe | One 7m length |
Axle | 3 pieces, 13T FUWA |
Tire | 12R22.5, 12 pieces (Optional spare tire) |
Landing gear | China brand 28T double speed |
Suspension | Heavy duty mechanical suspension |
