1. Road washing sweeper truck integrates the functions of a road sweeper, a sprinkler, and a high-pressure cleaning vehicle. It has road cleaning, road scrubbing, high-pressure cleaning, low-pressure cleaning, curb scrubbing, garbage collection, sewage recycling, spray dust reduction and road separation walls. Various operation functions such as cleaning and small advertisement cleaning.
2. It adopts the structure of "two vertical sweeps in the middle + wide suction nozzle in the middle (built-in high pressure water spray rod) + left and right high pressure side spray rods".
3. Using advanced intelligent one-key control technology, all operations are completed in the cab. During operation, only the operation mode is selected, and the start and shutdown of each operation mechanism are automatically controlled by the program.

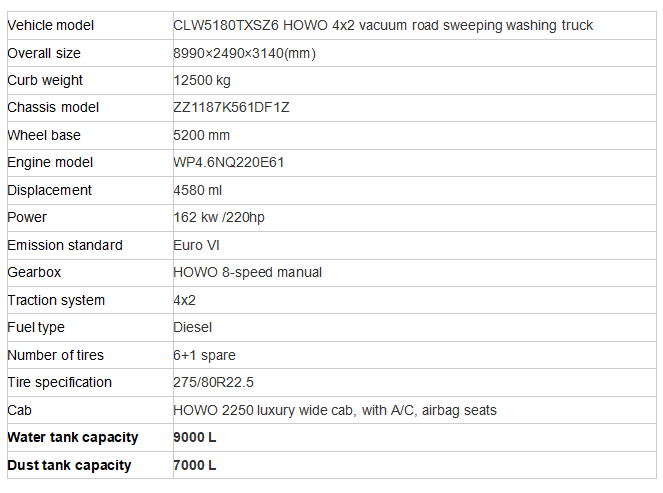

Specifications of SINOTRUK HOWO 4x2 Road Sweeping Washing Truck:
Special configuration for washing and sweeping truck:
1> With 2 central sweeping trays; central super-wide suction nozzle; double-layer vacuum cleaner;
2> Cummins 170 horsepower auxiliary engine; Taiwan hydraulic valve; powerful motor;
3> German Pinfu high-pressure water pump (front flush/side spray/middle spray/rear spray)/side flushing water gun/trash can self-cleaning device);
4> Universal high-pressure roadside cleaning;
5> Veyron low-pressure pump (pneumatic front flushing and then sprinkling); pneumatic ball valve control;
6> Stainless steel water tank; 4mm stainless steel trash can;
7> German controller; tail arrow light;
8> Engine oil, trash cans and water tanks are equipped with anti-overflow or low-level alarm devices;
9> Indoor monitor for reversing and washing and sweeping status;
10> Multiple voice prompts; automatic reversing protection, anti-dumping garbage overturning protection, overhaul safety protection;
11> 20m high pressure washing reel;
12> The brush arm rotating mechanism uses German imported high-tech and wear-resistant engineering spacers, which do not need to be greased;
13> Precision cold-formed seamless hydraulic oil pipe;
14> One-key computer control of CAN bus motion controller, up to 16 voice prompts or alarms.
15> The washing and sweeping width is 3.5m; the suction particle size is φ110mm.
